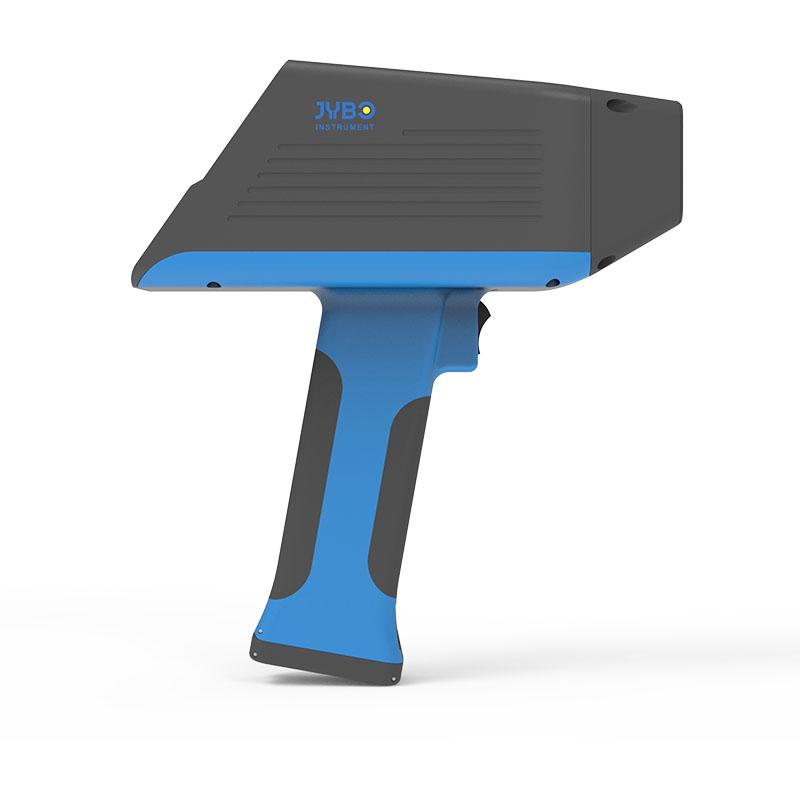

Handheld and Portable XRF Analyzer

The fastest handheld XRF analyzer.

Grade identification in 1 second for any metal.

Full chemistry testing in 3-5 seconds for stainless steel and other alloys.

Full chemistry testing in 7-8 seconds for aluminium alloy.

  • Product Detail
  • Video

Brief Description

JYBO Handheld XRF spectrometers use X-ray fluorescence technology to analysis the composition of a sample material by measuring the characteristic X-ray energies of the elements in the sample. Different characteristic X-rays of elements are excited when X-rays irradiate the sample. The type and amount of elements in the sample can be determined by detecting the energy and amount of these characteristic X-rays.

A handheld XRF spectrometer usually consists of an X-ray tube, a detector, a battery, a control circuit, a colour touch screen, and a case. The X-ray tube generates X-rays, the detector detects the energy and amount of characteristic X-rays, the battery provides power, the control circuit controls the whole workflow of the instrument, the colour touch screen sets the parameters and views the analysis results, and the case protects and prevents dust.



Main Characteristics

1.Simple operation

Only one battery is needed for all-day operation, and the instrument does not need to be standardized. The instrument works right out of the box.

2.Practical

Small, ergonomic and lightweight (1.5Kg) for everyday use. The screen is easy to read even in direct sunlight.

3.Time saving

Reliable grade information in just one second.

4.Latest technology

Share and store your results securely and generate reports via our cloud service. You can also connect this analyzer to a portable Bluetooth printer.

5. Analysis speed and accuracy

Fast analysis speed and accuracy. In a short time, you can quickly determine the content of many elements in the sample with high precision and accuracy.

6. Wide range of applications



Widely used in geology, minerals, materials, environmental protection and other fields. It can be used to analysis the types and contents of elements in various metal materials, alloys, soils, ores, ceramics and other samples. Meanwhile, it can also be used to analyze harmful elements in packaging materials, elements restricted by RoHS directive, etc.



Technical Parameter



Core technology

No specific element, automatic peak finding, involved in determining whether to test or not

Algorithm

FP adaptive algorithm

Dimensions ( L * W * H )

250mm*95mm*270mm

Weight

1.5Kg Battery included

Battery

14.8V, 3250mAh, 48Wh, 6 hours continuous use

Waterproof

IP54 water and dust resistant

WIFI

2.4/5 GHz 802.11n/b/a wireless network

Bluetooth

Bluetooth 5 Classic, low-power blue tooth

Display

3.5-inch capacitive touchscreen, 480*800 pixels

Storage

Internal standard storage 16Gb

X-Ray source

50Kv, 200uA, 4W all-in-one X-ray generator

Detector

Si-Pin detector

Fast-SDD detector

Resolution

148ev

123ev

Count rate

50kcps

1000Kcps

Test element

Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ta, W, Au etc (Ca-U)

Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ta, W, Au etc (Mg-U)

Single test time

1 - 90 seconds of customized settings

High precision test mode

Algorithmic analysis of the average value of several single tests

Alloy matrix

Iron-based, Aluminium-based, Zinc-based, Copper-based, Titanium-based, Nickel-based, Lead-based ......

Sample type

Liquid, solid, powder, etc.

Detection limit

Varies according to matrix and element

Database

Including hundreds of commonly used alloy grades, can be customized to add American Standard, Japanese Standard, German Standard any grade.

Working temperature

Standard 0~40℃(32~100℉) Recommendation 5~35℃(40~95℉)

Remote mode

Project the screen display to PC or mobile phone, and trigger the test remotely.

Software

JINYIBO client software (application update, data download and customized editing of grade library, generation of test report, calibration file editing, etc.)

Security

Safety interlocks

Warranty

One-year factory warranty on all parts

Extended warranty service

Extended warranty available with purchase of extended warranty
