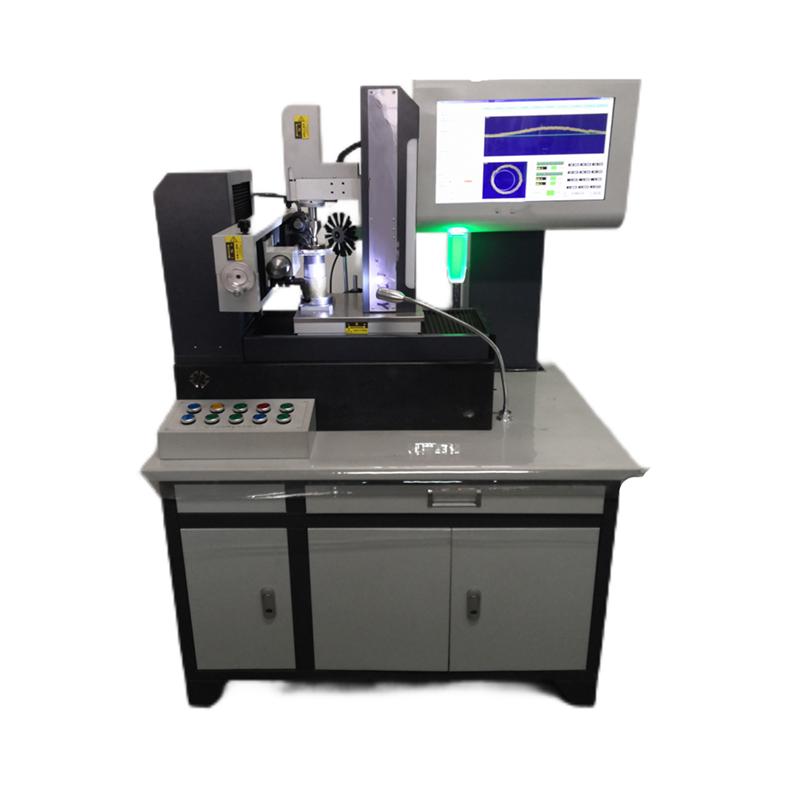

Worm & Pole Double Flank Gear Rolling Tester

CSW type online intelligent worm gear double-sided mesh measuring instrument is Lee Power Gages in the current market on the basis of the advantages of double snapping instrument combined with the actual requirements of gear manufacturers, field use environment, operating habits, the latest development of a new generation of online microcomputer control intelligent double-snapping instrument.

  • Product Detail
  • Video

Features

The product adopts high precision motion control and error data acquisition system, which can automatically measure the total radial deviation Fi", one tooth radial deviation fi" and radial runout Fr" when worm gear engages. The center distance, upper deviation of center distance, lower deviation of center distance (Eas, Eai), common normal line Wk, span distance (M) of worm gear and worm are detected in the center distance measurement mode, which is convenient for users to quickly judge the pairing of worm gear and worm. Can meet and continue to develop new measurement requirements put forward by users.



Specifications

1. Radial composite deviation:(Fi〞).

2. Tooth-to-tooth radial deviation:(fi〞).

3. Radial run-out:(Fr〞).

4. Common normal line:(W).

5. The distance across rollers:(M).

6. Center distance movement upper and lower deviation:(Eas、Eai).
