High resolution CMOS direct read out system
Save space with the smallest dimension and weight
High cost performance with excellent performance
Good determination of the different element in the various matrices
Operate a fast and accurate quantitative analysis
Argon flushed with minimal argon consumption
Complete automatic analysis software with diagnostic function
Summary:

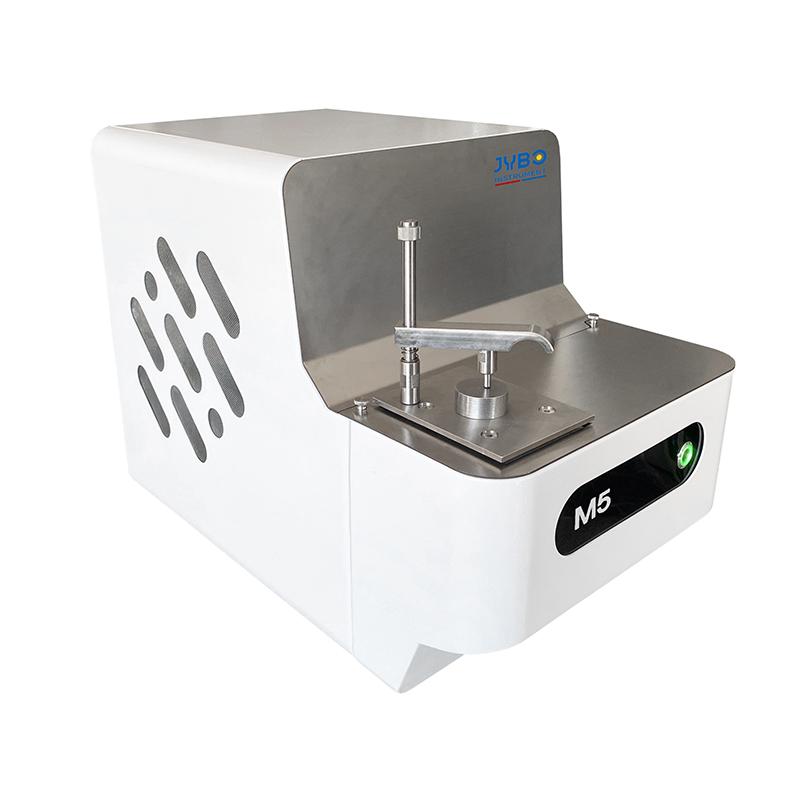

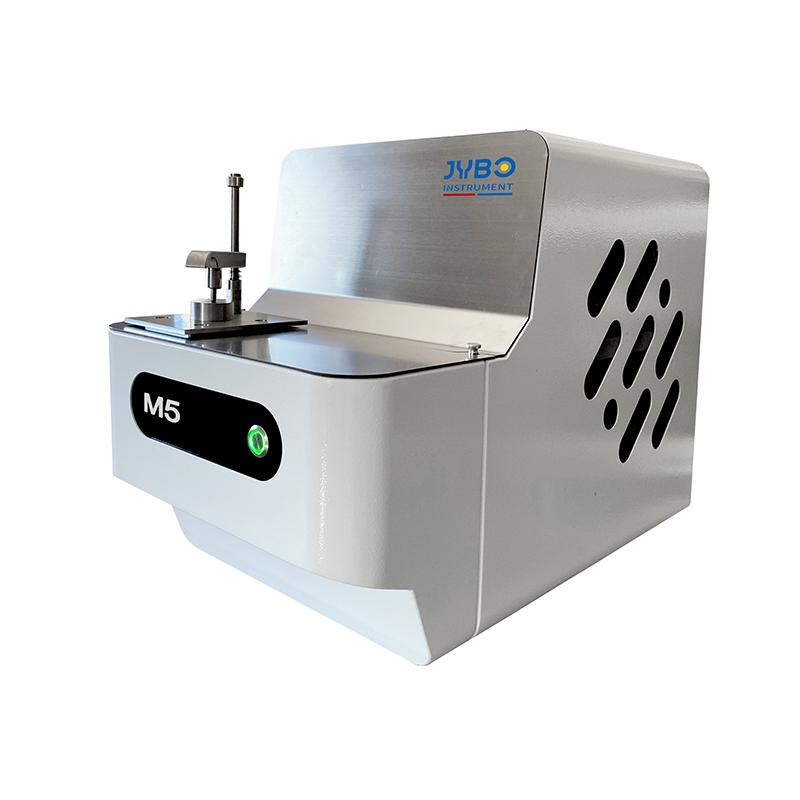

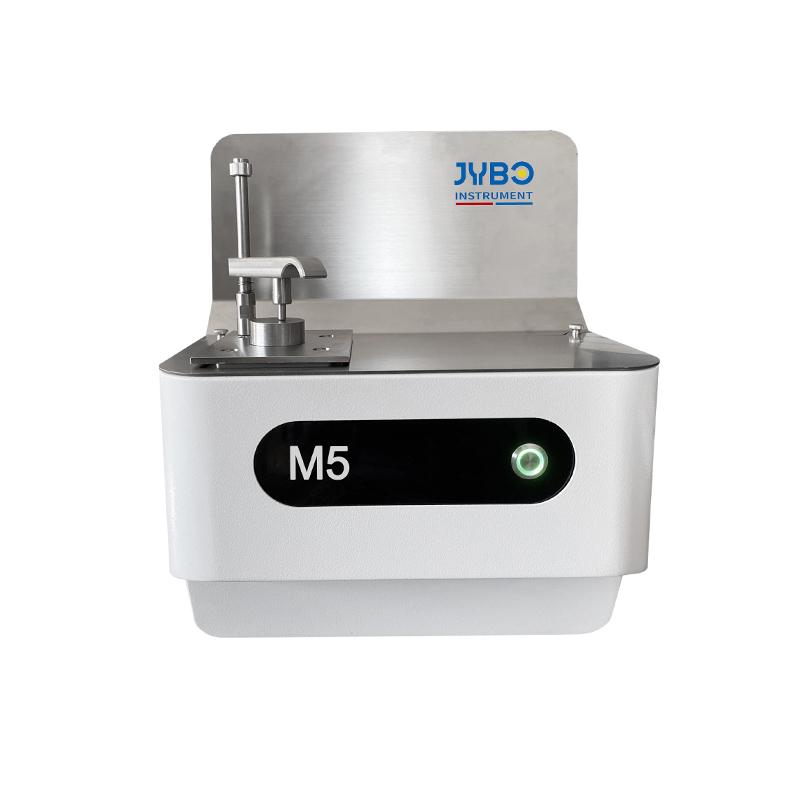

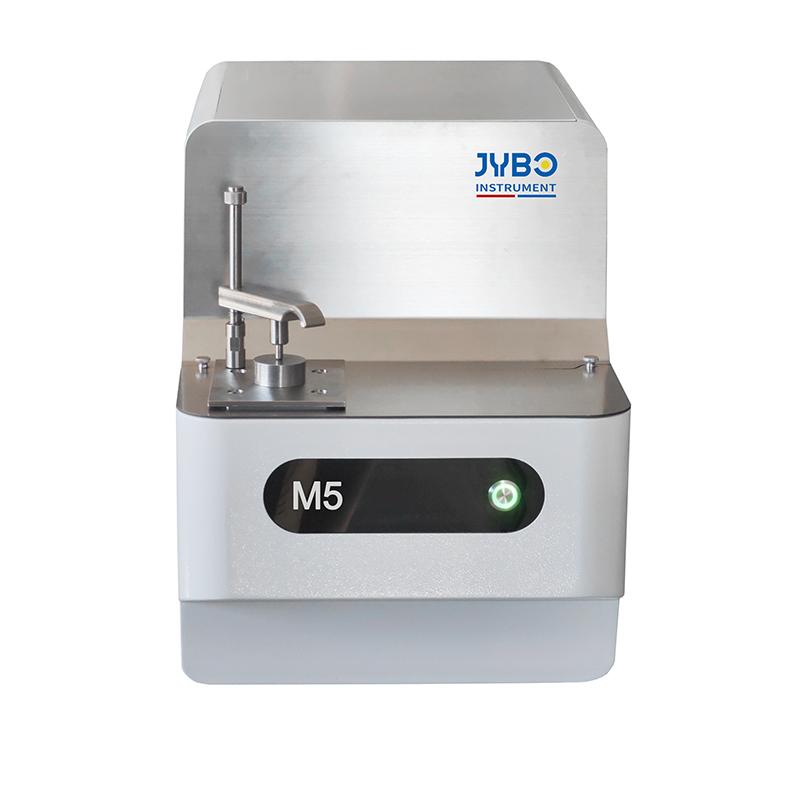

M5 Optical Emission Spectrometer adopts international standards design and manufacturing process technology, full digital and internet technology combined with high resolution CMOS detector and precision engineered argon purge system, and make the instrument is extremely high performance, extremely low cost, and competitively priced.
M5 Spectrometer is most suitable instrument for the determination of various elements in different matrices (Fe, Al, Cu). It provides a perfect solution for fast and accurate quantitative analysis before furnace, quality control of metal materials, research and development of research institutes. This also gives the user a truly portable spectrometer that’s both easy to use and easy to space saved.
Applications:
Testing Laboratories: Commercial testing laboratories, universities and colleges
Alloy manufacturers: metal processing control and chemical analysis
Medium-sized industries: Extremely rugged and economical; low cost / analysis
Foundries which need a quick analysis near the furnace
Manufacturing Facilities
Warehouse material identification
Base: Fe, Al, Cu
Features:
Precise reliable, fast, versatile and affordable
Compact designed desktop unit
Energy saving, standby power 50VA,
The light chamber filled with argon in place of vacuum system .
High resolution CMOS detector can achieve full spectrum analysis.
Full wavelength coverage, customized factory calibration, adding new element without further hardware configuration.
Wavelength range 165nm~580nm(extendable), spectral lines can cover all important elements
Highly sensitive UV detection with the precisely argon purge system,
Spectrometer temperature control ensuring high precision and stability
Programmable digitalized spark source, generating optimized discharge waveform for different bases.
Advanced excitation protection and diagnostic system ensuring operating safety
Argon purge control protecting entrance lens form contaminating, minimizing maintenance
Professional data capture, improved accuracy by reducing background interference
Global factory calibration with interference correction
Technology support and software update for free.
Parameter:
|
Item |
Index |
|
|
Optical System |
Focal Length |
300mm |
|
Wavelength range |
165nm-580nm(extendable) |
|
|
Detector |
High resolution CMOS Multi detectors |
|
|
Optical chamber |
Argon cycle filling |
|
|
Pixel resolution |
30pm |
|
|
Grating line |
3600m1/mm |
|
|
First order spectral line dispersion rare |
1.2nm/mm |
|
|
Average resolution ratio |
10pm/pixel |
|
|
Full spectrum |
||
|
Optical chamber temperature is controlled automatically |
||
|
Spark Source |
Type |
Digital arc and spark source |
|
Spark frequency |
100-1000HZ |
|
|
Discharge current |
1-400A |
|
|
Ignition voltage |
>15000V |
|
|
Spark light |
Optimization of discharge parameters design |
|
|
High energy precombustion technology HEPS |
||
|
Processor |
High-speed data synchronization acquisition and processing |
|
|
Spark Stand |
Electrode |
Tungsten electrode technology |
|
Make up |
Thermal deformation self-compensation design |
|
|
Argon flushed with minimal consumption of Argon |
||
|
Spray discharge electrode technology |
||
|
Adjustable electrode technology |
||
|
Others |
Measurable elements |
Fe、Al、Cu、Ni、Ti、Co、Zn、Sn、Mg、Pb etc |
|
Dimension |
600mm(L)*370mm*450mm(H) |
|
|
Weight |
About 40kg |
|
|
Storage temperature |
0℃-45℃ |
|
|
Operating temperature |
10℃-35℃, 23±2℃ is recommended |
|
|
Power |
AC220V/50Hz(Customized) |
|
|
Power consumption |
Excitation:400W/Stand by:50W |
|
|
Argon quality |
99.999%, Argon pressure>4Mpa |
|
|
Argon consumption |
5L/min during spark mode |
|
|
Interface |
Ethernet data transmission based on DM9000A |
|
High resolution CMOS direct read out system
Save space with the smallest dimension and weight
High cost performance with excellent performance
Good determination of the different element in the various matrices
Operate a fast and accurate quantitative analysis
Argon flushed with minimal argon consumption
Complete automatic analysis software with diagnostic function
Professional instruments, standardization
Analysis process based on ISO16232, VDA19
High-performance particle size testing system
Test results traceable,generate results and reports
Simple operation, capture images fast and efficient
Automatic compensation ,each image is clear, seamless browsing
Used in auto parts, aerospace, and hydraulic lubrication industries
Satisfy Volkswagen, BMW, GM, Ford and other major automakers
Because polishing is such a critical step in sample preparation, it’s important to choose a high quality polishing cloth. Our metallographic polishing cloth pads are thoroughly testedto provide a complete solution that delivers reliable results for each sample processed.
Carried Standards: VDA19, ISO16232, NAS1638, ISO4406 and other standards.
Analysis Time: Less than 5 minutes.
Particle Size: ≥5um
Particle Height: Particle height can be measured.
Focus Mode: Automatic focus, no human intervention.
Repetition Accuracy: Above 99% (membrane scanned repeatedly for 10 times)
Scanning Mode: Aotomatic scanning
Particles Identify: Metallic particles, non-metallic particles, fibers.
High resolution CMOS readout system
Low total cost of ownership
Vacuum optics enabling fast stabilization
Excellent long-term stability
Intelligent design, Modular design
Ferrous and non-ferrous applications
Easy to use with full PC control
Friendly user interface
Material: Transparent borosilicate glass
High-temperature resistant
Smooth surface, high transparency
Easy to use with stable material
Lid/base diameter: 64/60mm
High-end Carbon & Sulfur Analytical Equipment
Carbon: 0.000001%～99.999999%
Sulfur: 0.000001%～99.999999%
Available for low carbon and high sulfur
Available for two carbon range two sulfur range
Easy to operate
Carbon dioxide device
Carbon monoxide conversion
Automatic detection of solenoid valve
Key Applications: Mainly used in cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter, graphite, refractory materials, battery materials, plants and other materials.
The 4th Generation High Performance Metal Analyzer
CMOS-based, spark discharge, metal detection
Ultra-low limits of detection
High integration, reliability, stability
Lowing operating cost and easy maintenance
Vacuum optical chamber and low argon consumption
Argon jet technology to optimize small sample analysis
Standardized parameter modification
Maximum 30+ elements
High nitrogen (N) analysis 0.03-0.9%
